Single Head Bridge Polishing MachineHLAP-1800桥式磨机
领跑智能制作新“石”代
Single Head Bridge Polishing MachineHLAP-1800桥式磨机
隶属关系企业:
分属种别:木板抛光处理设备
想领会更多相干产物信息,请接洽咱们!
0594-2197723
hualongmc@163.com
进行推销可下方留言德律风座机号,咱俩会与您约见!
Purchase please leave a message phone and email, we will contact you!
单头桥式抛光机
HLAP-1800 是一款桥式外表抛光机,具有主动换头功效,精度高、不变性强,用处普遍且效力高,是用于各类资料(如花岗岩、石英、大理石、石灰石等)的校准、哑光研磨、抛光、洗擦和盘式喷砂等任务的万能型装备。这款平板抛光机可设置装备摆设成多种差别的计划,具有两种差别的横向挪动尺寸(2220 毫米或 3200 毫米),具有主动换刀功效,另有机器式或电动式遏制装配……等等。跑道的长度能够按照您的须要和您的任务地区停止调剂。

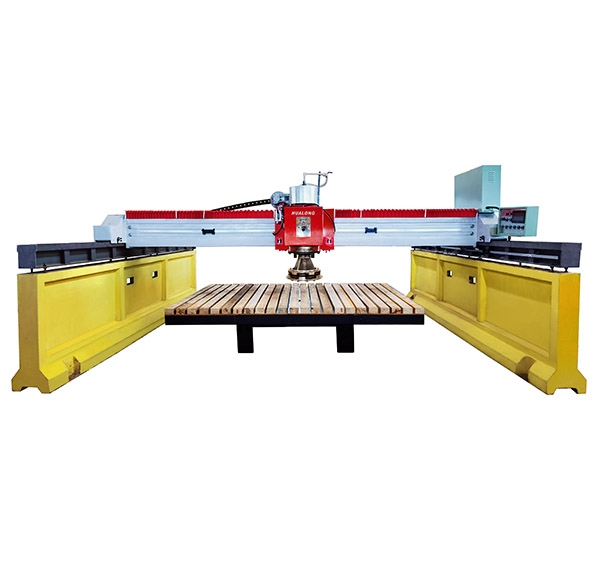

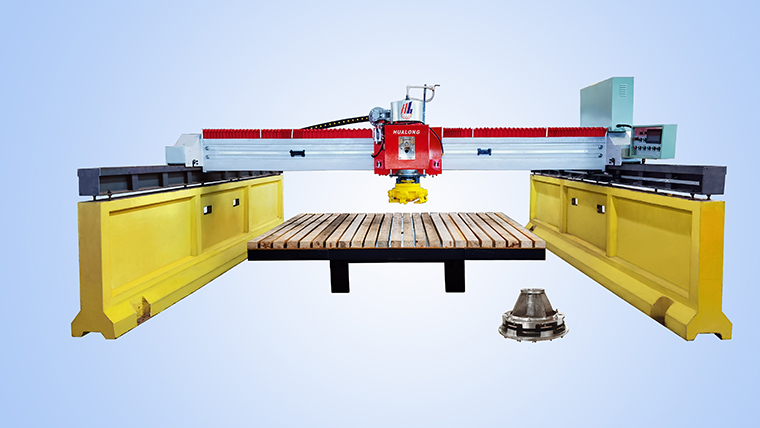

Single Head Bridge Polishing Machine with Automatic Tool Change
HLAP-1800 is a bridge type surface polishing machine with automatic head change, accurate and stable, versatile and efficient, which is a true all rounder for calibration, matt grinding, polishing, brushing and disc blasting all common materials, such as granite, quartz, marble, limestone...
This slab polishing machine can be configurated in different solutions, with 2 different traverse capacities ( 2220 or 3200 mm ), with automatic tool change, with mechanical or motorized stop…etc.
The runway length is adjustable accordi𒅌ng to your needs and your wor♔kshop area.
使用(yong)法式风格
* 软质石料(大理市石、缟玛脑、皂石等)用发(fa)兰克福头停此打磨
* 聚酯板(ban)石(shi)(石(shi)材、熔(rong)(rong)融石(shi)英砂、熔(rong)(r🌱oไng)融石(shi)英砂岩(yan)等)用菲克特头为止打磨抛(pao)光
Applications
* Hard stone (granite, quartz, quartzite, etc.) polishing ꦓwith fickert head
* Soft stone (marble, onyx, soapstone, eไtc.) polishing with frankfurt head
接洽咱们,获得完全计划!
Contact us to obtain the complete solution!
Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
华隆机械,数控粗工作车铣复合桥切机,四轴桥切机,4+1桥切,5+1桥切,三轴桥切机,红外线桥切机,石塑切机,石塑粗工作场配置,石塑增加光泽机,石塑增加光泽配置,石塑粗工作里边,工作台面粗工作里边,水刀,水刀分割机,矿井洞采配置,矿井圆球锯,圆球双刀锯,矿井机,矿井锯。
|
产物型号
|
Name
|
单元
|
HLDM-1800
|
|
主机电功率
|
Power of main motor
|
kw
|
11
|
|
任务平台尺寸
|
Working platform dimensions
|
mm
|
3200 x 2000
|
|
须要气压
|
Air pressure required
|
Mpa
|
0.3 - 0.5
|
|
最大加工尺寸
|
Max. processing dimensions
|
mm
|
3200 x 3200 x 60
|
|
任务台倾斜
|
Working platform tilting degree
|
n°
|
0-85
|
|
抛秃顶转速
|
R.P.M. of polishing head
|
r/min
|
550
|
|
X轴进给速率
|
X axis feeding speed
|
mm/min
|
5300
|
|
Y轴进给速率
|
Y axis feeding speed
|
mm/min
|
4000
|
|
耗宇量
|
Air consumption
|
m3/min
|
0.15 - 0.3
|
|
耗水量
|
Water consumption
|
m3/h
|
4
|
|
总分量
|
Gross weight
|
kg
|
7000
|
|
机台尺寸
|
Dimension (L x W x H)
|
mm
|
6000 x 5000 x 2800
|
%>
舒心小编提醒:倘若想体会多关键,的规格、规范标准、价格多少和加工处理项目,请商谈俺们。
